grill 0.8.0

Pipeline tools for (but not limited to) audiovisual projects.

The Grill

Cook digital.

grill namespace, meta-package with core tools and philosophy guidelines.

With future users and readers in mind, the grill aims to stick to the following principles:

• DRY (don't repeat yourself)
• SSOT (single source of truth)
• Convention over configuration (sensible defaults)
• SOLID (understandable, flexible and maintainable)
• KISS (keep it simple)

Foundational tools:

• Python
• USD
• EdgeDB

Install

python -m pip install grill

Extra Dependencies

The following optional dependencies should be installed separately.

• graphviz (for graph widgets)
• usdview (hopefully will be available soon via pypi). In the meantime, it can be downloaded from NVidia or built from USD source (conda recipe)

Conda Environment Example

For environment management, the grill uses conda. This is a walk-through on how to start using the grill tools with a fresh conda environment.

1. If conda is not on the system yet, install miniconda.

   Note: conda environment manager comes in two flavours:

   • Anaconda, which is conda + a lot of extra utilities.
   • miniconda is the main bootstrap for conda and is the preferred one. When in doubt, install this one.

2. Launch Anaconda Prompt (it came as part of the miniconda installation)

3. Create a new conda environment with python=3.7, e.g:

   (base) C:\>conda create -n grilldemo01 python=3.7


4. Activate that environment

   (base) C:\>conda activate grilldemo01


5. Install grill via pip

   (grilldemo01) C:\>python -m pip install grill


6. If missing, optionally install graphviz via conda

   (grilldemo01) C:\>conda install -c anaconda graphviz


7. If missing, optionally install usdview via NVidia builds or via building USD from source using this conda recipe.

   Note that if you're installing via the NVidia builds, you'll need PyOpenGL as well:

   (grilldemo01) C:\>python -m pip install PyOpenGL


8. Extend the PXR_PLUGINPATH_NAME environment variable to include the plugInfo.json file from the grill.resources path location.

   To know where the installed file is, run the following python command:

   (grilldemo01) C:\Users\Christian>python -c "from pathlib import Path;from grill import resources;path=(Path(resources.__path__._path[0]) / 'plugInfo.json');assert path.is_file();print(path)"


   It will print something like:

   C:\Users\Christian\.conda\envs\grilldemo01\lib\site-packages\grill\resources\plugInfo.json


   Which you can use to extend the pixar environment variable, e.g:

   (grilldemo01) C:\Users\Christian>set PXR_PLUGINPATH_NAME=%PXR_PLUGINPATH_NAME%;C:\Users\Christian\.conda\envs\grilldemo01\lib\site-packages\grill\resources\plugInfo.json

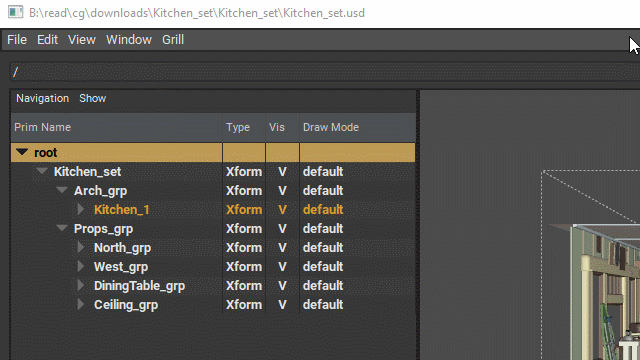

9. You should be able to launch usdview and see the Grill menu on the menu bar.

   (grilldemo01) C:\Users\Christian>usdview B:\read\cg\downloads\Kitchen_set\Kitchen_set\Kitchen_set.usd
