⌨️ LitRepl ⌨️

[Changelog](./CHANGELOG.md) | [Installation](#-installation) | [Usage](#basic-execution) | [Gallery](#-gallery) [](#-coverage-report)

**Litrepl** is a command-line processor for *Markdown* or *LaTeX* documents with **literate programming** code sections. Instructed by its arguments, it evaluates and updates sections via background interpreters. Interpreters can stay active for a **read-eval-paste-loop** style. The repository includes a Vim plugin to demonstrate editor integration.


_Notes:_ * _[literate programming](https://en.wikipedia.org/wiki/Literate_programming)_ * _[read-eval-print-loop coding](https://en.wikipedia.org/wiki/Read%E2%80%93eval%E2%80%93print_loop)_

Preprint: (2025, Sergei Mironov) Litrepl: Literate Paper Processor Promoting Transparency More Than Reproducibility arXiv:2501.10738

🔥 Features ----------- * **Document formats**
Markdown _(Example [[MD]](./doc/example.md))_ **|** [LaTeX](https://www.latex-project.org/) _(Examples [[TEX]](./doc/example.tex)[[PDF]](./doc/example.pdf))_ * **Interpreters**
[Sh](https://en.wikipedia.org/wiki/Bourne_shell) **|** [Bash](https://www.gnu.org/software/bash/) **|** [Python](https://www.python.org/) **|** [IPython](https://ipython.org/) **|** [Aicli](https://github.com/sergei-mironov/aicli) * **Editor integration**
[Vim](https://www.vim.org/scripts/script.php?script_id=6117) _(plugin source included)_ ✅ Requirements --------------- * **POSIX-compatible OS**, typically a Linux. The tool relies on POSIX operations, notably pipes, and depends on certain Shell commands. * **lark-parser** and **psutil** Python packages. * **[Socat](http://www.dest-unreach.org/socat/)** (Optional) Needed for `litrepl repl` and Vim's `LTerm` commands to work. 📚 Contents -----------

• ⚙️ Installation
• 🚀 Usage
  • General Concepts
    • Basic Execution
    • Selecting Sections for Execution
    • Managing Interpreter Sessions
    • Asynchronous Processing
    • Attaching Interpreter Sessions
    • Experimental AI Features
  • Application Scenarios
    • Command Line, Foreground Evaluation
    • Command Line, Detecting Python Exceptions
    • GNU Make, Evaluating Code Sections in Project Documentation
    • Vim, Setting Up Keybindings
    • Vim, Inserting New Sections
    • Vim, Running the Initial Section After Interpreter Restart
    • Vim, Evaluating Selected Text
    • Vim, Calling for AI on a visual selection
  • In-Depth Reference
    • Vim Commands and Command-Line Attributes
    • Command Line Arguments and Vim Variables
    • Command Line Arguments Summary
• 🏗️ Development Guidelines
  • Building Targets
  • Development Environments and Setup
  • Tools for Screencast Recording
  • Common Development Scenarios
• 🎥 Gallery
• 🖼️ Coverage report
• 💡 Technical Insights
• 🚫 Known Limitations
• Related Tools and Projects
• Considerations for Third-Party Tools

⚙️ Installation

This repository hosts the Litrepl tool, a standalone command-line application and an interface plugin for the Vim editor. The author's preferred installation method is using Nix, but if you choose not to use it, you'll need to install one or both components separately. Below, we outline several common installation methods.

Release versions, from Pypi and Vim.org

1. pip install litrepl
2. Download the litrepl.vim from the vim.org script page and put it into your ~/.vim/plugin folder.

Latest versions, from Git, using Pip and Vim-Plug

1. Install the litrepl Python package with pip:

   $ pip install --user git+https://github.com/sergei-mironov/litrepl
   $ litrepl --version


2. Install the Vim plugin by adding the following line between the plug#begin and plug#end lines of your .vimrc file:

   Plug 'https://github.com/sergei-mironov/litrepl' , { 'rtp': 'vim' }


   Note: rtp sets the custom vim-plugin source directory of the plugin.

Latest versions, from source, using Nix

The repository offers a suite of Nix expressions designed to optimize installation and development processes on systems that support Nix. Consistent with standard practices in Nix projects, the flake.nix file defines the source dependencies, while the default.nix file identifies the build targets.

For testing, the vim-demo expression is a practical choice. It includes a pre-configured Vim setup with several related plugins, including Litrepl. To build this target, use the command nix build '.#vim-demo'. Once the build is complete, you can run the editor with ./result/bin/vim-demo.

To add the Litrepl tool to your system profile, first include the Litrepl flake in your flake inputs. Then, add litrepl-release to environment.systemPackages or to your custom environment.

To include the Litrepl Vim plugin, add vim-litrepl-release to the vimPlugins list within your vim_configurable expression.

Regardless of the approach, Nix will manage all necessary dependencies automatically.

Nix are used to open the development shell, see the Development section.

Latest versions, from source, using Pip

The Litrepl application might be installed with pip install . run from the project root folder. The Vim plugin part requires hand-copying ./vim/plugin/litrepl.vim and ./vim/plugin/litrepl_extras.vim to the ~/.vim config folder.

The Nix-powered installation methods install the Socat tool automatically. For other installation methods, use your system pacakge manager to install it. For example, Ubuntu users might run sudo apt-get install socat.

The Python interpreter is usually installed by default, along with the pip installer. To install ipython, you can use pip install ipython. For the aicli interpreter, you can run pip install sm_aicli, or refer to the project page for additional installation methods.

🚀 Usage

General Concepts

The Litrepl tool identifies code and result sections within a text document. It processes the code by sending it to the appropriate interpreters and populates the result sections with their responses. The interpreters remain active in the background, ready to handle new inputs.

Litrepl supports subsets of Markdown and LaTeX formatting in order to recognize the sections. Some aspects of the recognized grammars, such as section labels, could be configured.

Basic Execution

Litrepl searches for verbatim code sections followed by zero or more result sections. In Markdown documents, the Python code is any triple-quoted section with a pre-configured label such as python. The result is any triple-quoted result section. In LaTeX documents, sections are marked with \begin{...}\end{...} environments correspondingly.

The primary command for evaluating formatted documents is litrepl eval-sections. Consider a hello.md document:

``` python
print('Hello Markdown!')
```
``` result
```

You pass it to Litrepl using:

$ cat hello.md | litrepl eval-sections > result.md

The result.md will have all sections filled in correctly.

``` python
print('Hello Markdown!')
```
``` result
Hello Markdown!
```

• For additional details on Markdown formatting, refer to Formatting Markdown documents

Similarly, in a LaTeX document, we format code and result sections as follows:

\begin{python}
print('Hello LaTeX!')
\end{python}

\begin{result}
Hello LaTeX!
\end{result}

• LaTeX documents require a preamble introducing python/result environments to the TeX processor. For more information, see Formatting LaTeX documents.

By default, Litrepl tried to guess the format of the input document. Use the --filetype=(latex|markdown) option to set the format explicitly:

$ cat doc.md | litrepl --filetype=markdown eval-sections
$ cat doc.tex | litrepl --filetype=latex eval-sections

• The main Vim command for code section evaluation is :LEval. By default, it executes the section at the cursor. To execute all sections in a document, use :LEval all.

Selecting Sections for Execution

By default, litrepl eval-sections evaluates all sections in a document. To evaluate only specific sections, the range argument should be specified. The overall syntax is litrepl eval-sections [RANGE], where RANGE can be:

• N: Represents a specific code section to evaluate, with the following possible formats:
  • A number starting from 0.
  • $ symbol, indicating the last section.
  • L:C, referring to the line and column position. Litrepl calculates the section number based on this position.
• N..N: Represents a range of sections, determined using the rules mentioned above.

Some examples:

$ litrepl eval-sections '0'       # First section in a document
$ litrepl eval-sections '3..$'    # Sections from fourth section (zero based) to the last one
$ litrepl eval-sections '34:1..$' # Sections starting from line 34 column 1

• The Vim command :LEval accepts similar syntax and also recognizes specific keywords all, above, and below. These keywords allow you to evaluate all sections, only those above the cursor, or just the ones below the cursor, respectively.

Managing Interpreter Sessions

Each interpreter session uses an auxiliary directory where Litrepl stores filesystem pipes and other runtime data.

By default, the auxiliary directory path is derived from the working directory name (for Vim, this defaults to the directory of the current file).

This behavior can be configured by:

• Setting the working directory with LITREPL_WORKDIR environment variable or --workdir=DIR command-line argument (this may also affect the current directory of the interpreters), or
• Explicitly setting the auxiliary directory with LITREPL_<CLASS>_AUXDIR environment variable or --<class>-auxdir=DIR command-line argument, where <class> stands for either python, ai or sh.

The commands litrepl start CLASS, litrepl stop [CLASS], and litrepl restart [CLASS] are used to manage interpreter sessions. They accept the interpreter type to operate on or (for some commands) the keyword all to apply the command to all interpreters. Add the --<class>-interpteter=CMDLINE to adjust the command line to run, but be careful - Litrepl adds more arguments to configure prompts and verbosity to some interpreters, notably to the pythons.

$ litrepl --python-interpreter=ipython start python
$ litrepl --sh-interpreter=/opt/bin/mybash start sh
$ litrepl restart all
$ litrepl stop

• The equivalent Vim commands are :LStart CLASS, :LStop [CLASS], and :LRestart [CLASS]. For the corresponding Vim configuration variables, see the reference section below.

The litrepl status [CLASS] command queries the information about the currently running interpreters. The command reveals the process PID and the command-line arguments. For stopped interpreters, the last exit codes are also listed. Specifying CLASS prints the status for this class of interpreters only.

$ litrepl status
# Format:
# CLASS  PID      EXITCODE  CMD
python   3900919  -         python3 -m IPython --config=/tmp/litrepl_1000_a2732d/python/litrepl_ipython_config.py --colors=NoColor -i
ai       3904696  -         aicli --readline-prompt=

• The corresponding Vim command is :LStatus. No CLASS argument is currently supported.

Asynchronous Processing

Litrepl can generate an output document before the interpreter has finished processing. If the evaluation takes longer than a timeout, Litrepl leaves a marker, enabling it to continue from where it was stopped during future runs. The --timeout=SEC[,SEC] option allows you to set timeouts. The first number specifies the initial execution timeout in seconds, while the optional second number sets the timeout for subsequent attempts. By default, both timeouts are set to infinity.

For instance, executing litrepl --timeout=3.5 eval-sections on the corresponding program yields:

``` python
from tqdm import tqdm
from time import sleep
for i in tqdm(range(10)):
  sleep(1)
```

``` result
 30%|███       | 3/10 [00:03<00:07,  1.00s/it]
[BG:/tmp/nix-shell.vijcH0/litrepl_1000_a2732d/python/litrepl_eval_5503542553591491252.txt]
```

Upon re-executing the document, Litrepl resumes processing from the marker. Once evaluation concludes, it removes the marker from the output section.

The command litrepl interrupt sends an interrupt signal to the interpreter, prompting it to return control sooner (with an exception).

• The equivalent Vim commands are :LEvalAsync (defaulting to a 0.5-second timeout) and :LInterrupt.

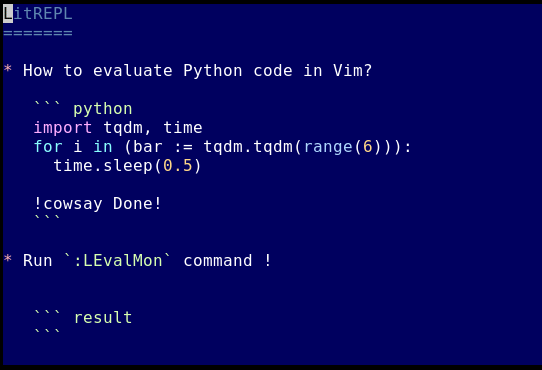

• The Vim plugin also provides the :LEvalMon command, which facilitates continuous code evaluation with no delay. Interrupting this with Ctrl+C will make Litrepl return control to the editor, leaving the evaluation ongoing in the background.

Attaching Interpreter Sessions

The command litrepl repl [CLASS] where CLASS specifies interpreter class: python (the default) ai or sh, attaches to interpreter sessions. For this command to work, socat tool needs to be installed on your system. Litrepl blocks the pipes for the time of interaction so no evaluation is possible while the repl session is active. For Python and Shell interpreters, the command prompt is disabled which is a current technical limitation. Use Ctrl+D to safely detach the session. For example:

$ litrepl repl python
Opening the interpreter terminal (NO PROMPTS, USE `Ctrl+D` TO DETACH)
W = 'Hello from repl'
^D
$

Use litrepl eval-code [CLASS] to direct code straight to the interpreter, bypassing any section formatting steps. In contrast to the repl command, eval-code mode features prompt detection, allowing the tool to display the interpreter's response and detach while keeping the session open.

For example, after manually defining the W variable in the example above, it can be queried as in a typical IPython session.

$ echo 'W' | litrepl eval-code
'Hello from repl'

The eval-code command can be utilized for batch processing and managing sessions, in a manner similar to how the expect tool is used.

• The equivalent Vim commands are :LRepl [CLASS] or :LTerm [CLASS]. Both commands open Vim terminal window.

Experimental AI Features

Litrepl experimentally supports Aicli terminal allowing users to query external language models. In order to try it, install the interpreter and use ai as the name for code sections. For low-speed models it might be convenient to use :LEvalMon command to monitor the text generation in real time.

``` ai
/model gpt4all:"./_models/Meta-Llama-3-8B-Instruct.Q4_0.gguf"
Hi chat! What is your name?
```

``` result
I'm LLaMA, a large language model trained by Meta AI. I'm here to help answer
any questions you might have and provide information on a wide range of topics.
How can I assist you today?
```

All Aicli /-commands like the /model command above are passed as-is to the interpreter. The /ask command is added automatically at the of each section, so make sure that ai secions have self-contained questions.

As a pre-processing step, Litrepl can paste text from other sections of the document in place of special reference markers. The markers have the following format:

• >>RX<<, where X is a number - references a section number X (starting from zero).
• ^^RX^^, where X is a number - references the section X times above the current one.
• vvRXvv, where X is a number - references the section X times below the current one.

``` ai
AI, what do you think the following text means?

^^R1^^
```

``` result
Another interesting piece of text!
This is an example of a chatbot introduction or "hello message." It appears to
be written in a friendly, approachable tone, with the goal of establishing a
connection with users.
```

Application Scenarios

Command Line, Foreground Evaluation

When performing batch processing of documents, it might be necessary to initiate a new interpreter session solely for the evaluation's duration rather than re-using the currently running session. The --foreground option can be used to activate this mode.

$ cat document.md.in | litrepl --foreground eval-sections > document.md

Command Line, Detecting Python Exceptions

Another frequently requested feature is the ability to report unhandled exceptions. Litrepl can be configured to return a non-zero exit code in such scenarios.

$ cat document.md
``` python
raise Exception("D'oh!")
```
$ cat document.md | litrepl --foreground --exception-exit=200 eval-sections
$ echo $?
200

In this example, the --foreground option instructs Litrepl to start a new interpreter session, stopping it upon completion. The --exception-exit=200 option specifies the exit code to be returned in the event of unhandled exceptions.

GNU Make, Evaluating Code Sections in Project Documentation

A typical Makefile recipe for updating documentation is structured as follows:

SRC = $(shell find -name '*\.py')

.stamp_readme: $(SRC) Makefile
	cp README.md _README.md.in
	cat _README.md.in | \
		litrepl --foreground --exception-exit=100 \
                --python-interpreter=ipython \
                --sh-interpreter=- \
		eval-sections >README.md
	touch $@

.PHONY: readme
readme: .stamp_readme

Here, $(SRC) is expected to include the filenames of dependencies. With this recipe, we can run make readme to evaluate the python sections. By passing - wealso tell Litrepl to ignore shell sections.

Vim, Setting Up Keybindings

The litrepl.vim plugin does not define any keybindings, but users could do it by themselves, for example:

nnoremap <F5> :LEval<CR>
nnoremap <F6> :LEvalAsync<CR>

Vim, Inserting New Sections

The litrepl.vim plugin doesn't include tools for creating section formatting, however they can be added easily if required. Below, we demonstrate how to define the :C command inserting new python sections.

command! -buffer -nargs=0 C normal 0i``` python<CR>```<CR><CR>``` result<CR>```<Esc>4k

Vim, Running the Initial Section After Interpreter Restart

Below we demonstrate how to define the :LR command for running first section after the restart.

command! -nargs=0 LR LRestart | LEval 0

Vim, Evaluating Selected Text

Litrepl vim plugin defines LitReplEvalSelection function which runs the selection as a virtual code section. The section type is passed as the function argument. For example, calling LitReplEvalSelection('ai') will execute the selection as if it is an ai code section. The execution result is pasted right after the selection as a plain text. LitReplEvalSelection('python') would pipe the selection through the current Python interpreter.

To use the feature, define a suitable key binding (Ctrl+K in this example),

vnoremap <C-k> :call LitReplEvalSelection('ai')<CR>

Now write a question to the AI in any document, select it and hit Ctrl+K.

Hi model. What is the capital of New Zealand?

Upon the keypress, Litrepl pipes the selection through the AI interpreter - the aicli at the time of this writing - and paste the response right after the last line of the original selection.

Hi model. What is the capital of New Zealand?
The capital of New Zealand is Wellington.

Internally, the plugin just uses eval-code Litrepl command.

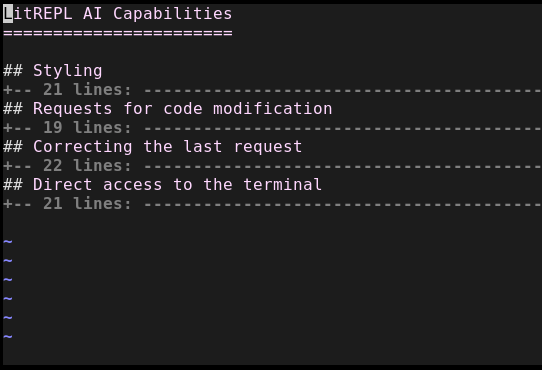

Vim, Calling for AI on a visual selection

The repository includes litrepl_extras.vim, which defines extra tools for interacting with AI. These tools are based on the single low-level LitReplAIQuery() function.

The function enables the creation of an AI chat query possibly incorporating the current file and any selected text. The AI model's response then returned alongside with the Litrepl error code.

Based on this function, the following two middle-level functions are defined:

• LitReplTaskNew(scope, prompt)
• LitReplTaskContinue(scope, prompt)

Both functions take the prompt, produce the AI model response and decide where to insert it. However, the key difference is that the first function determines the target location based on user input (like cursor position or selection), while the second function re-applies the previously used position, allowing users to make changes easilly.

Finally, a number of high-level commands have been established. Each of these commands receives an input string that directs the model on what action to take. The user input can contain /S or /F tokens, which are replaced with the values of the visual selection and the current file, respectively.

Command	Description	Incorporates	Updates
LAI	Passes the prompt as-is	Input, Selection	Cursor, Selection
LAICont	Passes the prompt as-is	Input, Selection	Last
LAIStyle	Asks to improve language style	Input, Selection	Selection
LAICode	Asks to modify a code snippet	Input, Selection	Cursor, Selection
LAITell	Asks to describe a code snippet	Input, Selection	Terminal*
LAIFile	Asks to change a whole file	Input, Selection, File	File

• LAITell shows the response in the AI terminal instead of inserting it into the document.

As with the selection evaluation mode, the aicli interpreter stays active in the background, maintaining the log of the conversation.

Direct interaction with the interpreter functions as expected. The LTerm ai command opens the Vim terminal as usual, enabling communication with a model through aicli text commands.

In-Depth Reference

Vim Commands and Command-Line Attributes

Vim	Command line	Description
:LStart [T]	litrepl start [T]	Start the background interpreter
:LStop [T]	litrepl stop [T]	Stop the background interpreter
:LRestart [T]	litrepl restart [T]	Restart the background interpreter
:LStatus [T]	litrepl status [T] <F	Print the background interpreter status
:LEval [N]	lirtepl eval-sections L:C <F	Evaluate the section under the cursor synchronously
:LEval above	lirtepl eval-sections '0..N' <F	Evaluate sections above and under the cursor synchronously
:LEval below	lirtepl eval-sections 'N..$' <F	Evaluate sections below and under the cursor synchronously
:LEval all	lirtepl eval-sections <F	Evaluate all code sections in a document
:LEvalAsync N	lirtepl --timeout=0.5,0 eval-sections N <F	Start or continue asynchronous evaluation of the section under the cursor
:LInterrupt N	lirtepl interrupt N <F	Send SIGINT to the interpreter evaluating the section under the cursor and update
:LEvalMon N	while .. do .. done	Start or continue monitoring asynchronous code evaluation
N/A	lirtepl eval-code <P	Evaluate the given code verbatim
:LTerm [T]	lirtepl repl [T]	Connect to the interpreter using GNU socat
:LOpenErr	litrepl ... 2>F	View errors
:LVersion	litrepl --version	Show version

Where

• T Type of the interpreter: python, ai or sh (some commands also accept all)
• F Path to a Markdown or LaTeX file
• P Path to a Python script
• N Number of code section to evaluate, starting from 0.
• L:C denotes line:column of the cursor.

Command Line Arguments and Vim Variables

Vim setting	CLI argument	Description
set filetype	--filetype=T	Input file type: latex|markdown
let g:litrepl_python_interpreter=B	--python-interpreter=B	The Python interpreter to use
let g:litrepl_ai_interpreter=B	--ai-interpreter=B	The AI interpreter to use
let g:litrepl_sh_interpreter=B	--sh-interpreter=B	The shell interpreter to use
let g:litrepl_python_auxdir=D	--python-auxdir=D	The auxiliary files directory used by Python interpreter
let g:litrepl_ai_auxdir=D	--ai-auxdir=D	The auxiliary files directory used by AI interpreter
let g:litrepl_sh_auxdir=D	--sh-auxdir=D	The auxiliary files directory used by a shell interpreter
let g:litrepl_workdir=D	--workdir=D	The auxiliary files directory used by AI interpreter
let g:litrepl_debug=0/1	--debug=0/1	Print debug messages to the stderr
let g:litrepl_timeout=FLOAT	--timeout=FLOAT	Timeout to wait for the new executions, in seconds, defaults to inf

• T Type of the document: tex or markdown (the default).
• B Interpreter command to use, - or auto (the default). - value disabled this type of interpreters; auto asks litrep to guess the best available interpreter.
• D Filesystem directory
• FLOAT Should be formatted as 1 or 1.1 or inf. Note: command line argument also accepts a pair of timeouts.

Command Line Arguments Summary

usage: litrepl [-h] [-v] [--filetype STR] [--python-markers STR[,STR]]
               [--ai-markers STR[,STR]] [--sh-markers STR[,STR]]
               [--python-interpreter EXE] [--ai-interpreter EXE]
               [--sh-interpreter EXE] [--python-auxdir DIR] [--ai-auxdir DIR]
               [--sh-auxdir DIR] [--timeout F[,F]] [--propagate-sigint]
               [-d INT] [--verbose] [-C DIR] [--pending-exitcode INT]
               [--irreproducible-exitcode INT] [--exception-exitcode INT]
               [--foreground] [--map-cursor LINE:COL:FILE]
               [--result-textwidth NUM]

{start,stop,restart,status,parse,parse-print,eval-sections,eval-code,repl,interrupt,print-regexp,print-grammar,print-auxdir}
               ...

positional arguments:

{start,stop,restart,status,parse,parse-print,eval-sections,eval-code,repl,interrupt,print-regexp,print-grammar,print-auxdir}
                              Commands to execute
    start                     Start the background interpreter.
    stop                      Stop the background interpreters.
    restart                   Restart the background interpreters.
    status                    Print background interpreter's status.
    parse                     Parse the input file without futher processing
                              (diagnostics).
    parse-print               Parse and print the input file back
                              (diagnostics).
    eval-sections             Parse stdin, evaluate the specified sections (by
                              default - all available sections), print the
                              resulting file to stdout.
    eval-code                 Evaluate the code snippet.
    repl                      Connect to the background terminal using GNU
                              socat.
    interrupt                 Send SIGINT to the background interpreter.
    print-regexp              Print regexp matching start of code sections for
                              the given file type.
    print-grammar             Print the resulting grammar for the given
                              filetype.
    print-auxdir              Print the auxdir for the given interpreter type.

options:
  -h, --help                  show this help message and exit
  -v, --version               Print version.
  --filetype STR              Specify the type of input formatting
                              (markdown|[la]tex|auto).
  --python-markers STR[,STR]  TODO
  --ai-markers STR[,STR]      TODO
  --sh-markers STR[,STR]      TODO
  --python-interpreter EXE    Python interpreter command line, or `auto`.
                              Defaults to the LITREPL_PYTHON_INTERPRETER
                              environment variable if set, otherwise "auto".
                              Litrepl determines "python" or "ipython" type
                              according to the value.
  --ai-interpreter EXE        `aicli` interpreter command line or `auto`.
                              Defaults to the LITREPL_AI_INTERPRETER
                              environment variable if set, otherwise "auto".
  --sh-interpreter EXE        Shell interpreter command line or `auto`.
                              Defaults to the LITREPL_SH_INTERPRETER
                              environment variable if set, otherwise "auto".
  --python-auxdir DIR         This directory stores Python interpreter pipes.
                              It defaults to LITREPL_PYTHON_AUXDIR if set;
                              otherwise, it's created in the system's
                              temporary directory, named after the current
                              working directory.
  --ai-auxdir DIR             This directory stores AI interpreter pipes. It
                              defaults to LITREPL_AI_AUXDIR if set; otherwise,
                              it's created in the system's temporary
                              directory, named after the current working
                              directory.
  --sh-auxdir DIR             This directory stores AI interpreter pipes. It
                              defaults to LITREPL_SH_AUXDIR if set; otherwise,
                              it's created in the system's temporary
                              directory, named after the current working
                              directory.
  --timeout F[,F]             Timeouts for initial evaluation and for pending
                              checks, in seconds. If the latter is omitted, it
                              is considered to be equal to the former one.
  --propagate-sigint          If set, litrepl will catch and resend SIGINT
                              signals to the running interpreter. Otherwise it
                              will just terminate itself leaving the
                              interpreter as-is.
  -d INT, --debug INT         Enable (a lot of) debug messages.
  --verbose                   Be more verbose (used in status).
  -C DIR, --workdir DIR       Set the working directory before execution. By
                              default, it uses LITREPL_WORKDIR if set,
                              otherwise remains the current directory. This
                              affects the directory of a new interpreter and
                              the --<interpreter>-auxdir option.
  --pending-exitcode INT      Return this error code if whenever a section
                              hits timeout.
  --irreproducible-exitcode INT
                              Return this error code if a section outputs a
                              different result than the one that is already
                              present in the document.
  --exception-exitcode INT    Return this error code at exception, if any.
                              Note: this option might not be defined for some
                              interpreters. It takes affect only for newly-
                              started interpreters.
  --foreground                Start a separate session and stop it when the
                              evaluation is done. All --*-auxdir settings are
                              ignored in this mode.
  --map-cursor LINE:COL:FILE  Calculate the new position of a cursor at
                              LINE:COL and write it to FILE.
  --result-textwidth NUM      Wrap result lines longer than NUM symbols.

🏗️ Development Guidelines

This project uses Nix as its main development framework. The file flake.nix manages the source-level dependencies required by Nix, whereas default.nix specifies common build targets, including PyPI and Vim packages, demo Vim configurations, development shells, and more.

Building Targets

To build individual Nix expressions, execute the command nix build '.#NAME', replacing NAME with the actual name of the Nix expression you want to build. If the build is successful, Nix places the results of the last build in a symbolic link located at ./result.

The list of Nix build targets includes:

• litrepl-release - Litrepl script and Python lib
• litrepl-release-pypi - Litrepl script and Python lib
• vim-litrepl-release - Vim with locally built litrepl plugin
• vim-litrepl-release-pypi - Vim with litrepl plugin built from PYPI
• vim-test - A minimalistic Vim with a single litrepl plugin
• vim-demo - Vim configured to use litrepl suitable for recording screencasts
• vim-plug - Vim configured to use litrepl via the Plug manager
• shell-dev - The development shell
• shell-screencast - The shell for recording demonstrations, includes vim-demo.

See local.collection attribute-set in the default.nix for the full list of defined targetr.

For example, to build a version of Vim pre-configured for demo, run

$ nix build '.#vim-demo'
$ ./result/bin/vim-demo  # Run the pre-configured demo instance of Vim

Development Environments and Setup

The default development shell is defined in the ./default.nix as a Nix expression named shell which is the default name for development shells. Running

$ nix develop

will ask Nix to install the development dependencies and open shell.

Tools for Screencast Recording

Another shell which might be useful is shell-screencast. This would build the full set of Litrepl tools and makes sure that the screencasting software is available. To enter it, specify its Nix-flake path as follows:

$ nix develop '.#shell-screencast'

In the opened shell, run the screencast.sh and wait a second, until the script arranges demo and recorder wondows.

$ screencast.sh

screencast.sh accepts an optional parameter specifying the template file to open for the recording session.

Common Development Scenarios

The top-level Makefile encodes common development scenarios:

[ LitREPL-DEV ] $ make help
make[1]: Entering directory '/home/grwlf/proj/litrepl.vim'
LitREPL is a macroprocessing Python library for Litrate programming and code execution
Build targets:
help:       Print help
test:       Run the test script (./sh/runtests.sh)
readme:     Update code sections in the README.md
wheel:      Build Python wheel (the DEFAULT target)
vimbundle:  Build Vim bundle
version:    Print the version
dist:       Build Python and Vim packages
upload:     Upload Python wheel to Pypi.org (./_token.pypi is required)
make[1]: Leaving directory '/home/grwlf/proj/litrepl.vim'

The runtests.sh script runs all tests by default, but accepts command-line arguments for running specific tests.

[ LitREPL-DEV ] $ runtests.sh --help
Usage: runtest.sh [-d] [-i I(,I)*] [-t T(,T)*]
Arguments:
  -d                        Be very verbose
  -i I, --interpreters=I    Run tests requiring interpreters matching the grep expression I
                            Run -i '?' to list all available interpreters
  -t T, --tests=T           Run tests whose names match the grep expression T
                            Run -t '?' to list all available tests
  -p P, --python=P          Use this Python interpreter to run Litrepl
                            Run -p '?' to list available python interpreters
  -c FILE, --coverage=FILE  Collect coverage results into the FILE. Defaults to
                            `.coverage` if no tests or interpreters are
                            selected, otherwize disabled.
  -c -,    --coverage=-     Disable coverage.

Examples:
  runtests.sh -t '?' -i '?'
  runtests.sh -i ipython
  runtests.sh -t 'test_eval_code|test_status' -i python

🎥 Gallery

Basic usage (Show GIF)

AI capabilities (Show GIF)

Vimtex integration (Show Video)

We utilize LitRepl alongside the Vimtex plugin to edit and preview LaTeX documents instantly.

📊 Coverage report

coverage report --format=markdown -m

Name	Stmts	Miss	Cover	Missing
python/litrepl/__init__.py	34	12	65%	24-29, 35-40
python/litrepl/base.py	558	46	92%	48, 60, 78, 88, 137, 167, 206-212, 222, 228, 400, 411-412, 436-441, 449, 472, 498-499, 557, 614-615, 680-682, 726-735, 753-758
python/litrepl/eval.py	336	32	90%	36, 39-40, 77-78, 91, 122, 148-149, 173-175, 190, 199, 274-280, 299-300, 318, 327, 352, 364-367, 380-381
python/litrepl/interpreters/__init__.py	0	0	100%
python/litrepl/interpreters/aicli.py	50	19	62%	15-17, 37, 41-51, 60-66
python/litrepl/interpreters/ipython.py	32	1	97%	70
python/litrepl/interpreters/python.py	22	1	95%	38
python/litrepl/interpreters/shell.py	22	1	95%	26
python/litrepl/main.py	206	47	77%	22-24, 163, 166-169, 212, 221, 238-243, 245-247, 258-267, 280, 290-294, 303-311, 313-314, 320-321
python/litrepl/revision.py	1	1	0%	2
python/litrepl/semver.py	1	1	0%	2
python/litrepl/types.py	94	6	94%	124, 129, 135, 138, 141, 144
python/litrepl/utils.py	97	6	94%	37, 55, 129-132
TOTAL	1453	173	88%

💡 Technical Insights

The following events should normally happen after users type the :LitEval1 command:

1. On the first run, LitREPL starts the Python interpreter in the background. Its standard input and output are redirected into UNIX pipes in the current directory.
2. LitREPL runs the whole document through the express Markdown/Latex parser determining the start/stop positions of code and result sections. The cursor position is also available and the code from the right code section can reach the interpreter.
3. The process which reads the interpreter's response is forked out of the main LitREPL process. The output goes to the temporary file.
4. If the interpreter reports the completion quickly, the output is pasted to the resulting document immediately. Otherwise, the temporary results are pasted.
5. Re-evaluating sections with temporary results causes LitREPL to update these results.

🚫 Known Limitations

• Formatting: Nested code sections are not supported.
• Formatting: Special symbols in the Python output could invalidate the document.
• Interpreter: Extra newline is required after Python function definitions.
• Interpreter: Stdout and stderr are joined together.
• Interpreter: Evaluation of a code section locks the editor.
• Interpreter: Tweaking os.ps1/os.ps2 prompts of the Python interpreter could break the session.
• Interpreter: No asynchronous code execution.
• Interpreter: Background Python interpreter couldn't be interrupted

Related Tools and Projects

Edititng:

• https://github.com/lervag/vimtex (LaTeX editing, LaTeX preview)
• https://github.com/shime/vim-livedown (Markdown preview)
• https://github.com/preservim/vim-markdown (Markdown editing)

Code execution:

• Vim-medieval https://github.com/gpanders/vim-medieval
  • Evaluates Markdown code sections
• Pyluatex https://www.ctan.org/pkg/pyluatex
• Magma-nvim https://github.com/dccsillag/magma-nvim
• Codi https://github.com/metakirby5/codi.vim
• Pythontex https://github.com/gpoore/pythontex
  • Evaluates Latex code sections
• Codebraid https://github.com/gpoore/codebraid
• Vim-ipython-cell https://github.com/hanschen/vim-ipython-cell
• Vim-ipython https://github.com/ivanov/vim-ipython
• Jupytext https://github.com/goerz/jupytext.vim
  • Alternative? https://github.com/mwouts/jupytext
• Ipython-vimception https://github.com/ivanov/ipython-vimception

Useful Vim plugins:

• https://github.com/sergei-grechanik/vim-terminal-images (Graphics in vim terminals)

Useful tools:

• https://pandoc.org/

Considerations for Third-Party Tools

• Vim-plug https://github.com/junegunn/vim-plug/issues/1010#issuecomment-1221614232
• Pandoc https://github.com/jgm/pandoc/issues/8598
• Jupytext https://github.com/mwouts/jupytext/issues/220#issuecomment-1418209581
• Vim-LSC https://github.com/natebosch/vim-lsc/issues/469
• Bad PDF fonts in Firefox
