webviz-ert 0.5.7

Webviz plugins for ERT

Web based visualization for ERT

What is Webviz-ert

Webviz-ert is a visualization tool for ERT based on dash and webviz-config.

Download project

The code is hosted on GitHub: https://github.com/equinor/webviz-ert

# From the downloaded project's root folder - to install
pip install .

Running tests

Make sure that you have a browser and driver available for running the tests, e.g. chrome / chromium and the chrome driver, which should be installed / downloaded as binaries and made available in the path.

# From the downloaded project's root folder - to run tests
pip install -r test_requirements.txt
cd tests
pytest

Run Webviz-ert

Webviz-ert connects automatically to a storage server running in ERT. Here are a few steps to get an example version of webviz-ert running.

# Run simulations in ert - <ert-root-folder>/test-data/local/poly_example/
ert ensemble_smoother --target-case smoother poly.ert

# After simulation has finished, start webviz-ert from the same location with
ert vis

# Alternatively, you might have to supply the config file if you're using the
# classic ert storage solution:
ert vis poly.ert

Example

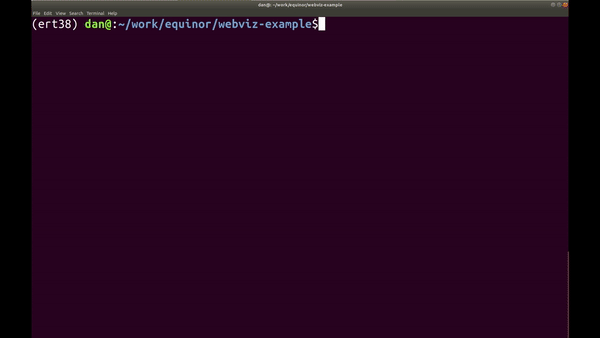

Start up

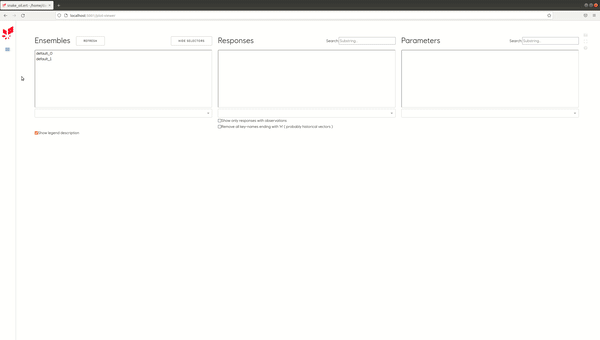

Plot viewer

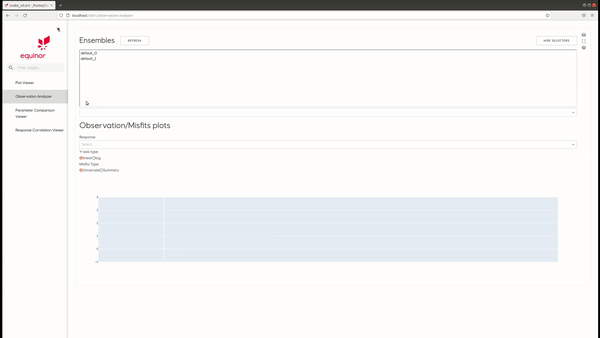

Observation Analyzer

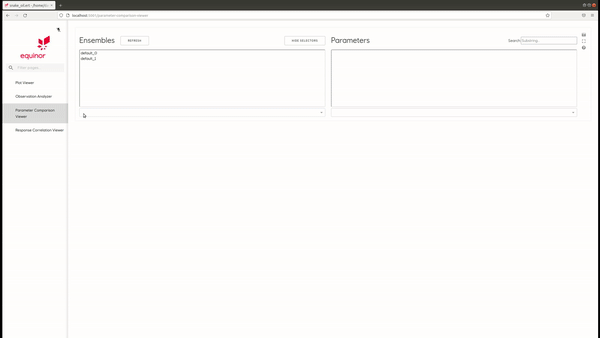

Parameter comparison

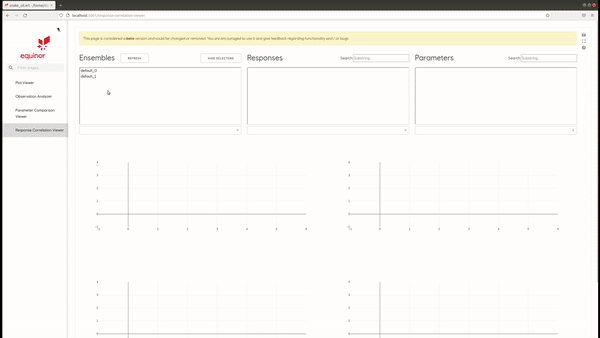

Response correlation
